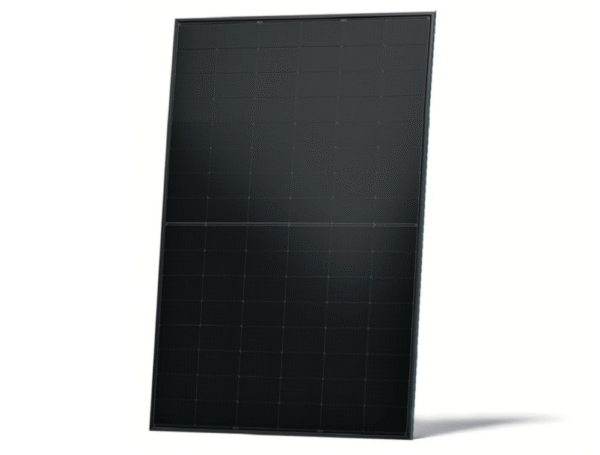

JINKO JKM455N-48HL4M-DB Full Black Module
SKU: F10C0120-12
EAN: 2010000031827
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | Yes |
| Frame color | |
| Sprawność | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Typ modułu | |
| PV cell type | N-type TOPCon |
| Podwójne szkło | Yes |
| Ilość BusBar | |
| Klasa niepalności | |
| Grubość ramy | |
| Wysokość | |
| Szerokość | |
| Wytrzymałość (Pa) | |
| Długość przewodu plus | 400 mm |
| Długość przewodu minus | 200 mm |
| Ilość na palecie | |
| Ilość w kontenerze | |
| Weight | 24 kg |
| CN | 85414300 |
Price
73,48 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Model | |
| Power | |
| Fullblack | Yes |
| Frame color | |
| Sprawność | |
| Tier 1 | |
| Product warranty | |
| Linear power warranty | |
| Typ modułu | |
| PV cell type | N-type TOPCon |
| Podwójne szkło | Yes |
| Ilość BusBar | |
| Klasa niepalności | |
| Grubość ramy | |
| Wysokość | |
| Szerokość | |
| Wytrzymałość (Pa) | |
| Długość przewodu plus | 400 mm |
| Długość przewodu minus | 200 mm |
| Ilość na palecie | |
| Ilość w kontenerze | |
| Weight | 24 kg |
| CN | 85414300 |
Jinko Solar Tiger Neo 48HL4M-DB
The Jinko Solar Tiger Neo 48HL4M-DB photovoltaic modules are advanced N-type panels designed for optimal performance and reliability. Utilizing innovative TOPCon technology and a Dual Glass construction, they deliver excellent energy production in a variety of conditions. This series is also distinguished by a sleek, fully black finish.
Key features of the Jinko Solar Tiger Neo 48HL4M-DB:
- N-type TOPCon technology minimizing LID/LeTID degradation and providing better performance in low-light conditions.
- Dual Glass design (double glass) with 2.0 mm thickness on both front and back for enhanced durability.
- High output power ranging from 450 to 475 Wp and module efficiency up to 23.77%, optimizing energy production.
- Increased mechanical strength, certified for loads of 6000 Pa (front) and 4000 Pa (back).
- High resistance to salt mist and ammonia, ensuring reliability in extreme environmental conditions.
- Anti-PID warranty and SMBB and HOT 3.0 technologies for improved reliability and efficiency.
Who is it a good choice for?
The Jinko Solar Tiger Neo 48HL4M-DB modules are an ideal solution for residential and commercial customers seeking panels with top efficiency, reliability, and durability. Their elegant, fully black design makes them a perfect fit for the aesthetics of modern buildings, while their resistance to harsh weather conditions makes them an excellent choice for installations in demanding locations.
| Parameter | 450 Wp | 455 Wp | 460 Wp | 465 Wp | 470 Wp | 475 Wp |
|---|---|---|---|---|---|---|
| Mechanical Characteristics | ||||||
| Cell Type | Monocrystalline N-type | Monocrystalline N-type | Monocrystalline N-type | Monocrystalline N-type | Monocrystalline N-type | Monocrystalline N-type |
| Number of Cells | 96 (48×2) | 96 (48×2) | 96 (48×2) | 96 (48×2) | 96 (48×2) | 96 (48×2) |
| Dimensions (mm) | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 | 1762×1134×30 |
| Weight (kg) | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 | 24.0 |
| Front Glass (mm) | 2.0, Anti-reflective Coating | 2.0, Anti-reflective Coating | 2.0, Anti-reflective Coating | 2.0, Anti-reflective Coating | 2.0, Anti-reflective Coating | 2.0, Anti-reflective Coating |
| Back Glass (mm) | 2.0, Tempered Glass | 2.0, Tempered Glass | 2.0, Tempered Glass | 2.0, Tempered Glass | 2.0, Tempered Glass | 2.0, Tempered Glass |
| Frame | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy |
| Junction Box | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Protection Class | Class II | Class II | Class II | Class II | Class II | Class II |
| IEC Fire Type | Class C | Class C | Class C | Class C | Class C | Class C |
| Connector Type | JK03M/JK03M2/Others* | JK03M/JK03M2/Others* | JK03M/JK03M2/Others* | JK03M/JK03M2/Others* | JK03M/JK03M2/Others* | JK03M/JK03M2/Others* |
| Output Cables (mm²) | 4.0, (+): 400 mm, (-): 200 mm or custom length | 4.0, (+): 400 mm, (-): 200 mm or custom length | 4.0, (+): 400 mm, (-): 200 mm or custom length | 4.0, (+): 400 mm, (-): 200 mm or custom length | 4.0, (+): 400 mm, (-): 200 mm or custom length | 4.0, (+): 400 mm, (-): 200 mm or custom length |
| Packaging Configuration | ||||||
| Palette Dimensions (mm) | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 | 1792×1140×1249 |
| Packing Details | 37 pcs/palette, 74 pcs/stack (two stacks = one palette), 962 pcs/40’HQ container | 37 pcs/palette, 74 pcs/stack (two stacks = one palette), 962 pcs/40’HQ container | 37 pcs/palette, 74 pcs/stack (two stacks = one palette), 962 pcs/40’HQ container | 37 pcs/palette, 74 pcs/stack (two stacks = one palette), 962 pcs/40’HQ container | 37 pcs/palette, 74 pcs/stack (two stacks = one palette), 962 pcs/40’HQ container | 37 pcs/palette, 74 pcs/stack (two stacks = one palette), 962 pcs/40’HQ container |
| Specifications (STC) | ||||||
| Maximum Power – Pmax (Wp) | 450 | 455 | 460 | 465 | 470 | 475 |
| Maximum Voltage – Vmp (V) | 30.25 | 30.48 | 30.71 | 30.94 | 31.17 | 31.40 |
| Maximum Current – Imp (A) | 14.88 | 14.93 | 14.98 | 15.03 | 15.08 | 15.13 |
| Open Circuit Voltage – Voc (V) | 36.04 | 36.21 | 36.38 | 36.55 | 36.72 | 36.89 |
| Short Circuit Current – Isc (A) | 15.76 | 15.81 | 15.86 | 15.91 | 15.96 | 16.01 |
| Module Efficiency STC (%) | 22.52 | 22.77 | 23.02 | 23.27 | 23.52 | 23.77 |
| Power Tolerance | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % | 0 ~ +3 % |
| Temperature Coefficient of Pmax (%/°C) | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 | -0.29 |
| Temperature Coefficient of Voc (%/°C) | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 | -0.25 |
| Temperature Coefficient of Isc (%/°C) | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
| Operating Conditions | ||||||
| Operating Temperature (°C) | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 |
| Maximum System Voltage (VDC) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) | 1500 (IEC) |
| Maximum Series Fuse (A) | 30 | 30 | 30 | 30 | 30 | 30 |
* MC4 and MC4-EVO2 connectors available upon request and subject to availability.
