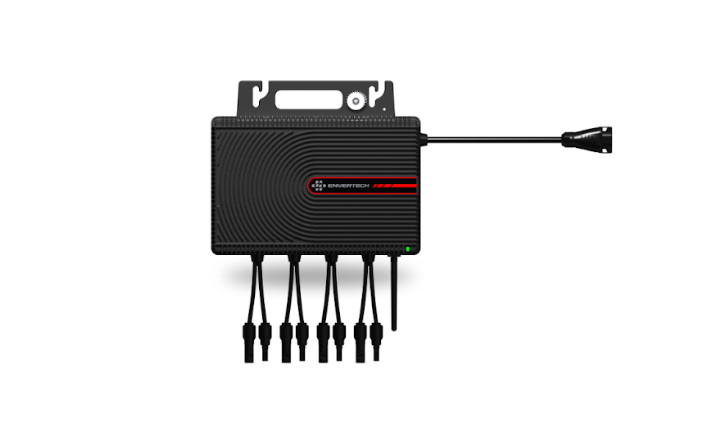

Microinverter ENVERTECH EVT2000SE
| Rated power | |
|---|---|
| Urządzenie hybrydowe | |
| MPPT | 4 |
| Gwarancja | |
| Szerokość netto | |
| Głębokość netto | |
| Wysokość netto | |
| Maksymalny prąd zwarciowy | |
| Maksymalny prąd wyjściowy | |
| Maksymalna wydajność | |
| Wi-Fi | Yes |
| PLCC | Yes |
| Weight | 5,54 kg |
| CN | 85044085 |
Gross
Product details
| Rated power | |
|---|---|
| Urządzenie hybrydowe | |
| MPPT | 4 |
| Gwarancja | |
| Szerokość netto | |
| Głębokość netto | |
| Wysokość netto | |
| Maksymalny prąd zwarciowy | |
| Maksymalny prąd wyjściowy | |
| Maksymalna wydajność | |
| Wi-Fi | Yes |
| PLCC | Yes |
| Weight | 5,54 kg |
| CN | 85044085 |
Envertech EVT SE Series Microinverters (EVT1600SE, EVT1800SE, EVT2000SE)
The Envertech EVT SE series microinverters (models EVT1600SE, EVT1800SE, EVT2000SE) are advanced devices designed to connect four solar panels. They are characterized by high safety due to operation at low DC voltage, the use of components from world-class brands, and flexible monitoring options. They provide optimization and monitoring at the module level, leading to maximum energy yield.
Key Features of the Envertech EVT SE Series Microinverters:
- Optimization for Four Panels: Each microinverter supports up to four solar panels (recommended module power range 250W – 650W+), with four independent MPPT trackers.
- High Efficiency and Safety: MPPT efficiency of 99.9% and peak efficiency up to 96.5% (EVT1600SE). Operates at a safe, low input DC voltage (up to 60V) and has an IP67 protection rating.
- Flexibility and Easy Installation: Quick Plug & Play installation, ideal for small systems and optimized space utilization.
- Advanced Module-Level Monitoring: Smart management and monitoring capabilities via PLCC communication or built-in Wi-Fi (an optional monitoring device may be required and is subject to an additional fee).
- Long Lifespan and Warranty: Designed for a lifespan of 25 years, they come standard with a 15-year warranty, with an option to extend up to 20 years.
- Output Power Range: Available models with a maximum continuous output power of 1600VA, 1800VA, and 2000VA, tailored to different installation needs.
Who is this a good choice for?
The Envertech EVT SE series microinverters are an excellent choice for users seeking maximum performance, safety, and flexibility in their solar installations. They are particularly beneficial in systems where each panel operates independently, which is advantageous in cases of partial shading or varying module tilt angles. They are suitable for both small home systems and larger installations, where detailed monitoring and optimization of each panel’s performance are critical.
| Parameter | EVT 1600SE | EVT 1800SE | EVT 2000SE |
|---|---|---|---|
| DC Input Data | |||
| Recommended module power range (W) | (250W – 650W+)*4 | (250W – 650W+)*4 | (250W – 650W+)*4 |
| Maximum input voltage (V) | 60V | 60V | 60V |
| MPPT voltage range (V) | 22V-50V | 22V-50V | 22V-50V |
| Minimum startup voltage (V) | 16V | 16V | 16V |
| Maximum continuous input current (A) | 20A*4 | 20A*4 | 20A*4 |
| Maximum input short-circuit current (A) | 25A | 25A | 25A |
| Number of MPPTs | 4 | 4 | 4 |
| AC Output Data | |||
| Maximum continuous output power (VA) | 1600VA | 1800VA | 2000VA |
| Nominal output voltage/range (V) | 220/230/(189~260) | 220/230/(189~260) | 220/230/(189~260) |
| Maximum continuous output current (A) | 7.27A | 8.18A | 9.09A |
| Nominal frequency/range (Hz) | 50Hz (47.5~52.5Hz) 60Hz (57.5~62.5Hz) |
50Hz (47.5~52.5Hz) 60Hz (57.5~62.5Hz) |
50Hz (47.5~52.5Hz) 60Hz (57.5~62.5Hz) |
| Power factor (adjustable) | +/-0.9 | +/-0.9 | +/-0.9 |
| Total harmonic distortion (%) | <3% | <3% | <3% |
| Maximum number of units per branch (12AWG cable) | 3 Units | 2 Units | 2 Units |
| Maximum number of units per branch (10AWG cable) | 4 Units | 3 Units | 3 Units |
| Efficiency | |||
| Peak efficiency (%) | 96.5% | 96.3% | 96.0% |
| MPPT efficiency (%) | 99.9% | 99.9% | 99.9% |
| Night power consumption (mW) | <100mW | <100mW | <100mW |
| Mechanical and Environmental Data | |||
| Ambient temperature range (°C) | -40~+65 | -40~+65 | -40~+65 |
| Relative humidity (%) | 0%~98% | 0%~98% | 0%~98% |
| Dimensions (W x H x D mm) | 300*199.5*41mm | 300*199.5*41mm | 300*199.5*41mm |
| Weight (kg) | 4.92kg | 4.92kg | 4.92kg |
| Ingress protection (IP) | IP67 | IP67 | IP67 |
| Cooling | Natural convection | Natural convection | Natural convection |
| Features | |||
| Communication | PLCC (Power Line Communication) / WiFi | PLCC (Power Line Communication) / WiFi | PLCC (Power Line Communication) / WiFi |
| Compliance | LVD 2014/35/EU, EMC 2014/30/EU, RED 2014/53/EU, ROHS, REACH, EN 50549-1/10, IEC 62116&IEC 61727, VDE-AR-N 4105, C10/11, TOR, NC-RfG, NA/EEA-NE7 – CH 2020, NTS | ||
| Inverter isolation | High-frequency isolation | High-frequency isolation | High-frequency isolation |
| Surge category | OVC III (AC Network), OVC II (PV) | OVC III (AC Network), OVC II (PV) | OVC III (AC Network), OVC II (PV) |
| Protection class | Class I | Class I | Class I |
| Warranty (Years) | 15 Years (optional 20 years) | 15 Years (optional 20 years) | 15 Years (optional 20 years) |
Monitoring device*: Monitoring devices are optional and require an additional fee.
Monitoring allows users to manage systems in an intelligent, digital manner via PLCC or built-in Wi-Fi.
