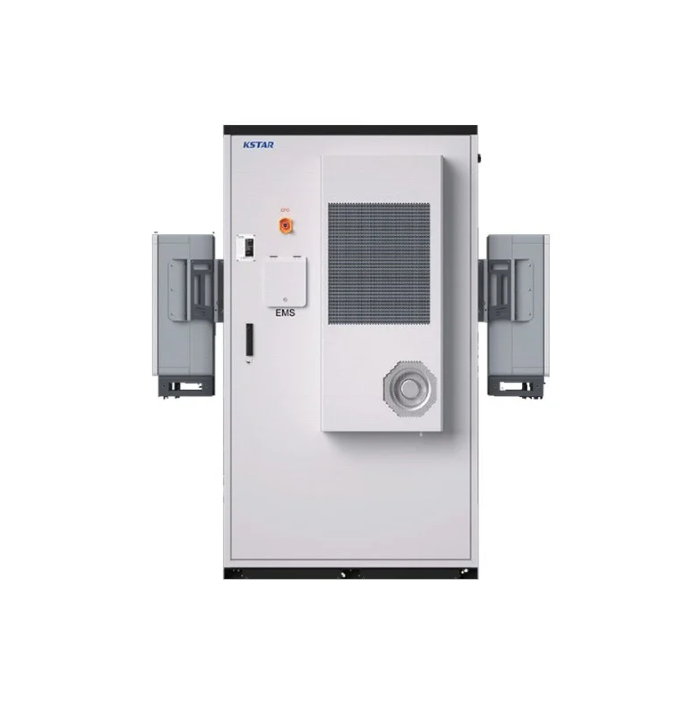

KSTAR ALL IN ONE C&I ESS 100kW/197kWh
SKU: F2300-2
EAN: 2010000030950
| Manufacturer | |
|---|---|
| Szerokość netto | |
| Głębokość netto | |
| Wysokość netto | |
| Pojemność | |
| Gwarancja | |
| Rated power | |
| Ethernet | Yes |
| CAN | Yes |
Price
52 428,44 €
Gross
Gross
Product details
| Manufacturer | |
|---|---|
| Szerokość netto | |
| Głębokość netto | |
| Wysokość netto | |
| Pojemność | |
| Gwarancja | |
| Rated power | |
| Ethernet | Yes |
| CAN | Yes |
KSTAR BluePulse Series Energy Storage System for C&I
The new KSTAR BluePulse series is an advanced energy storage system (ESS) specifically designed for commercial and industrial (C&I) applications. It combines safety, reliability, cost-effectiveness, and high performance, while also providing a simple and user-friendly operation. The system consists of modular battery cabinets (BC100DE, BC197DE) and a hybrid inverter (KAC50DP), allowing for flexible configuration based on needs, such as 50kW/100kWh, 50kW/200kWh, or 100kW/197kWh.
Key Features of the KSTAR BluePulse Series Energy Storage System:
- Safety and reliability: The battery cabinets utilize LFP cells from CATL, feature advanced management systems (BMS), and are equipped with climate control. The KAC50DP inverter offers numerous electrical protections.
- Modularity and scalability: The system can be configured with different power and capacity options by combining battery cabinets (e.g., BC100DE with 102.4 kWh capacity or BC197DE with 197 kWh capacity) with KAC50DP inverters (power of 50kW). The maximum number of inverters that can be connected in parallel is 20.
- High efficiency: The KAC50DP hybrid inverter boasts a maximum efficiency of 97.5% and includes 3 MPPT trackers for optimizing output from photovoltaic installations.
- Resistance to external conditions: The battery cabinets are designed for outdoor installation (IP54, corrosion class C4, operating temperature from -30°C to +50°C). The inverter has an IP65 protection rating and operates within a temperature range of -25°C to +60°C.
- Easy operation and intelligent management: An integrated EMS, Ethernet and CAN communication ports, and CAN and TCP protocols facilitate easy management and monitoring of the system.
- On-grid and off-grid operation modes: The system provides a rated output power of 50 kW (max. 55 kVA) both when connected to the grid and in backup power mode (additional STS cabinets are required for off-grid applications).
Who is it a good choice for?
The KSTAR BluePulse Series energy storage system is an ideal solution for businesses, commercial, and industrial facilities that are seeking a reliable, efficient, and scalable ESS. It is perfect for optimizing energy costs, increasing self-consumption from PV installations, providing backup power, and stabilizing the grid. With its modular design and ability to operate in challenging external conditions, this system offers flexibility and long-term value for a wide range of C&I applications.
| Parameter | KAC50DP (Hybrid Inverter) | BC100DE (Battery Cabinet) | BC197DE (Battery Cabinet) |
|---|---|---|---|
| External Battery Cabinet Parameters | |||
| Technical Specifications of the Battery Cabinet | |||
| Battery Type | LFP | LFP | |
| Manufacturer | CATL | CATL | |
| Cell Type (Ah) | 100 | 280 | |
| Module Capacity (kWh) | 5.12 | 17.92 | |
| Number of Modules | 20 | 11 | |
| Total Capacity (kWh) | 102.4 | 197 | |
| Nominal Voltage (V) | 512 | 704 | |
| Voltage Range (V) | 456 V ~ 576 V | 616 V ~ 792 V | |
| Battery Power | 0.5C | 0.5C | |
| DoD (%) | 90% | 90% | |
| Main Parameters of the Battery Cabinet | |||
| Dimensions (W x H x D) (mm) | 1100 x 2380 x 1100 | 1300 x 2380 x 1200 | |
| Weight (T) | < 1.5 | < 2.5 | |
| Installation Location | Outdoor | Outdoor | |
| Protection Class IP | IP54 | IP54 | |
| Corrosion Protection Class | C4 | C4 | |
| Humidity Range (%) | 5% ~ 95% (No condensation) | 5% ~ 95% (No condensation) | |
| Temperature Range (°C) | -30°C ~ +50°C | -30°C ~ +50°C | |
| Max. Height (m) | 4000 m ( > 3000 m power drop) | 4000 m ( > 3000 m power drop) | |
| Communication Ports | Ethernet; CAN | Ethernet; CAN | |
| Communication Protocols | CAN; TCP | CAN; TCP | |
| Cooling | Air Conditioner | Air Conditioner | |
| Battery Cabinet Certifications | IEC 62619-2017; UN 38.3; IEC 61000-6-2/4 | IEC 62619-2017; UN 38.3; IEC 61000-6-2/4 | |
| Technical Parameters of the Hybrid Inverter (KAC50DP) | |||
| PV Side (KAC50DP) | |||
| Max. MPPT Voltage (V) | 1000 | ||
| MPPT Voltage Range (V) | 350 V ~800 V | ||
| Max. Current at MPPT (A) | 36 | ||
| Number of MPPTs | 3 | ||
| Number of Inputs per MPPT | 2 | ||
| Battery Side (KAC50DP) | |||
| Max. Input Voltage (V) | 750 | ||
| Min. Input Voltage (V) | 350 | ||
| DC Voltage – Nominal (V) | 500 V ~ 750 V | ||
| Max. DC Current (A) | 55 A*2 | ||
| Max. DC Power (kW) | 55 | ||
| Number of DC Inputs | 2 | ||
| AC Side (Grid) (KAC50DP) | |||
| Nominal AC Power (kW) | 50 | ||
| Max. Output AC Power (kVA) | 55 | ||
| Max. AC Current (A) | 80 | ||
| Nominal Voltage (V) | 400 | ||
| Voltage Range (V) | 340 V ~ 440 V | ||
| Nominal Frequency / Range (Hz) | 50/60 Hz ±5Hz | ||
| THDv (%) | < 3% (100% Load) | ||
| Power Factor Regulation Range | -1 (Inductive) ~ 1 (Capacitive) | ||
| AC Side (Mode: Off Grid)¹) (KAC50DP) | |||
| Nominal Voltage (V) | 230/400 V ±3%; 3L+N+PE | ||
| THDv (%) | < 3% (Linear Load) | ||
| Frequency (Hz) | 50/60 Hz | ||
| Nominal AC Power (kW) | 50 | ||
| Max. Output AC Power (kVA) | 55 | ||
| Efficiency (KAC50DP) | |||
| Max. Efficiency (%) | 97.5% | ||
| Protection (KAC50DP) | |||
| Reverse DC Connection Protection | Yes | ||
| DC Circuit Breaker | Yes | ||
| Temperature Protection | Yes | ||
| Network Monitoring / Grounding Monitoring | Yes | ||
| Insulation Resistance Monitoring | Yes | ||
| DC / AC Surge Protection | DC Type II; AC Type III | ||
| General Parameters of the Inverter (KAC50DP) | |||
| Dimensions (WxHxD) (mm) | 650 x 715 x 325 | ||
| Weight (kg) | 75 | ||
| Type | Transformer-less | ||
| Protection Class IP | IP65 | ||
| Operating Temperature Range (°C) | -25 ~ 60°C ( > 45°C power drop) | ||
| Humidity Range (%) | 0 ~ 100% (No condensation) | ||
| Cooling Type | Air Cooling | ||
| Max. Height (m) | 3000 | ||
| Communication Ports | RS-485 / CAN | ||
| Inverter Certifications | IEC 62477; IEC 61000; CE; GB/T; IEC 62109; IEC 61683; IEC 60068; IEC 61727; IEC 62116; EN 50549; VDE 4105; G 99 | ||
¹) For OFF-GRID applications, STS100D or STS250D cabinets are required.
The maximum number of inverters connected in parallel is 20 units.
