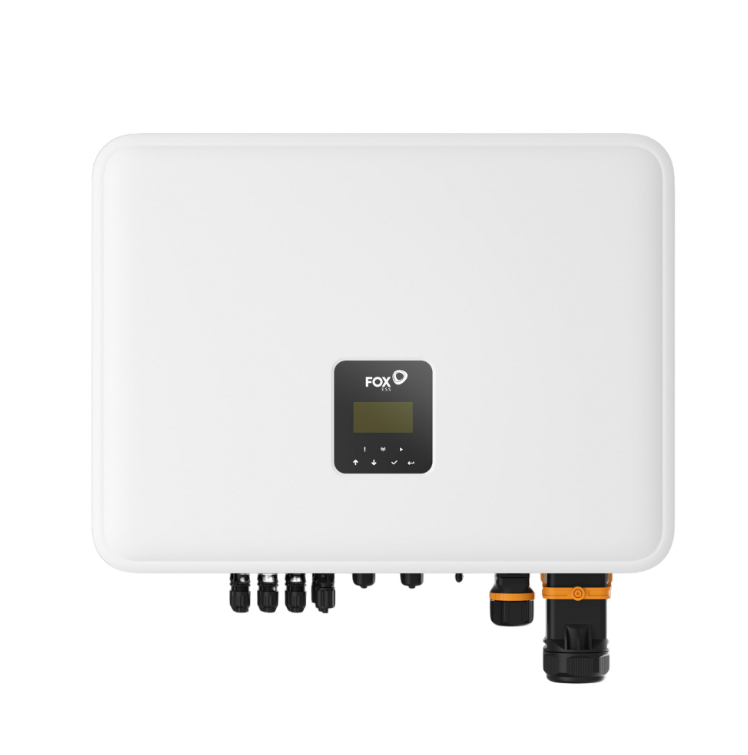

FoxESS P3-6.0-SH Hybrid Inverter
SKU: F290B51
EAN: 2010000034583
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Urządzenie hybrydowe | |
| MPPT | 3 |
| AFCI | Optional |
| Gwarancja | |
| Szerokość netto | |
| Głębokość netto | |
| Wysokość netto | |
| Wi-Fi | Yes |
| Ethernet | Yes |
| RS485 | Yes |
| CAN | Yes |
| USB | Yes |
| LAN | Yes |
| 4G | Optional |
| Bluetooth | Yes |
| DRM | Yes |
| SPD Type II | |
| Tryb pracy off-grid | |
| Zakres napięcia MPPT | |
| Weight | 37,9 kg |
| CN | 85044085 |
Price
1 440,83 €
Gross
Gross
Karta katalogowa FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Karta-katalogowa.pdf
Instrukcja montażu FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Instrukcja-montazu.pdf
Gwarancja FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Gwarancja.pdf
Certyfikat zgodności 1 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certyfikat-zgodnosci-1.pdf
Certyfikat zgodności 2 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certyfikat-zgodnosci-2.pdf
Deklaracja zgodności FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Deklaracja-zgodnosci.pdf
Oświadczenie FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Oswiadczenie.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Urządzenie hybrydowe | |
| MPPT | 3 |
| AFCI | Optional |
| Gwarancja | |
| Szerokość netto | |
| Głębokość netto | |
| Wysokość netto | |
| Wi-Fi | Yes |
| Ethernet | Yes |
| RS485 | Yes |
| CAN | Yes |
| USB | Yes |
| LAN | Yes |
| 4G | Optional |
| Bluetooth | Yes |
| DRM | Yes |
| SPD Type II | |
| Tryb pracy off-grid | |
| Zakres napięcia MPPT | |
| Weight | 37,9 kg |
| CN | 85044085 |
Fox ESS P3-5 Three-Phase Hybrid Inverter (P3-SH Series)
The innovative Fox ESS three-phase hybrid inverters from the P3-SH series are designed to maximize solar energy use throughout the day and store the excess for nighttime. Equipped with advanced technology and compatibility with Fox ESS high-voltage batteries, they offer flexible and efficient energy management.
Key Features of Fox ESS P3-5:
- High Compatibility with HV Batteries: Seamless integration with Fox ESS lithium-ion high-voltage batteries ranging from 100 to 800 V for optimal energy storage.
- Exceptional Efficiency: Maximum efficiency up to 97.90% and an impressive MPPT efficiency of 99.90%, ensuring effective energy conversion.
- Wide Power Range: Available AC nominal power from 5 kW to 15 kW and a maximum PV input power up to 30 kW, providing flexibility to meet various installation needs.
- Smart Monitoring and Ease of Use: Remote system monitoring via mobile app or website (FoxCloud V2.0) along with quick, intuitive plug-and-play installation.
- Durability and Full Protection: IP65-rated design allows installation in diverse environments, complemented by comprehensive protections including reverse polarity, islanding, and overload safeguards.
- Long Warranty: Standard 10-year manufacturer warranty assuring reliability and durability of the device.
Who Is This a Good Choice For?
The Fox ESS P3-SH series inverters are an excellent option for homeowners as well as small to medium-sized businesses aiming to optimize their self-consumption of solar energy and increase energy independence. Thanks to their three-phase design, high efficiency, flexible energy storage, and remote monitoring, they are ideal for photovoltaic systems that require reliable and advanced energy management.
Karta katalogowa FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Karta-katalogowa.pdf
Instrukcja montażu FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Instrukcja-montazu.pdf
Gwarancja FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Gwarancja.pdf
Certyfikat zgodności 1 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certyfikat-zgodnosci-1.pdf
Certyfikat zgodności 2 FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Certyfikat-zgodnosci-2.pdf
Deklaracja zgodności FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Deklaracja-zgodnosci.pdf
Oświadczenie FoxESS P3-5.0-SH - P3-15.0-SH
FoxESS-P3-5.0-SH-P3-15.0-SH-Oswiadczenie.pdf
| Parameter | P3-5.0-SH | P3-6.0-SH | P3-8.0-SH | P3-9.9-SH | P3-10.0-SH | P3-12.0-SH | P3-15.0-SH |
|---|---|---|---|---|---|---|---|
| PV INPUT | |||||||
| Max. PV Power (Wp) | 11000 | 14000 | 18000 | 20000 | 20000 | 24000 | 30000 |
| Max. Input Power (W) | 11000 | 13200 | 17600 | 18000 | 18000 | 22500 | 22500 |
| Max. Input Voltage (V) | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] | 1000 [1] |
| Nominal Input Voltage (V) | 620 | 620 | 620 | 620 | 620 | 620 | 620 |
| Max. MPPT Input Current (A) | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 |
| Max. MPPT Short-Circuit Current (A) | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 |
| Max. MPPT Input Power (W) | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 | 10000/10000/10000 |
| Min. PV Operating Voltage (V) | 90 [2] | 90 [2] | 90 [2] | 90 [2] | 90 [2] | 90 [2] | 90 [2] |
| MPPT Operating Voltage Range (V) | 120~950 | 120~950 | 120~950 | 120~950 | 120~950 | 120~950 | 120~950 |
| Start-up Voltage (V) | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Number of Independent MPPTs | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of Strings per MPPT | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 | 1+1+1 |
| BATTERIES | |||||||
| Battery Type | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) | Lithium-Ion battery (LFP) |
| Battery Voltage Range (V) | 100~800 | 100~800 | 100~800 | 100~800 | 100~800 | 100~800 | 100~800 |
| Min. Battery Operating Voltage (V) | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Min. Battery Voltage at Full AC Load (V) | 108 | 125 | 160 | 210 | 210 | 250 | 310 |
| Max. Charging/Discharging Current (A) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Communication Interface | CAN | CAN | CAN | CAN | CAN | CAN | CAN |
| AC OUTPUT | |||||||
| Nominal Output Power (W) | 5000 | 6000 | 8000 | 9900 | 10000 | 12000 | 15000 |
| Max. Apparent Power (VA) | 5500 | 6600 | 8800 | 9900 | 11000 [3] | 13200 | 16500 |
| Grid Rated Voltage (AC Voltage Range) (V) | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE |
| Grid Rated Frequency (Hz) | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 |
| Rated AC Current (A) (per phase) | 7.6 | 9.1 | 12.1 | 15.0 | 15.2 | 18.2 | 22.7 |
| Max. AC Current (A) (per phase) | 8.3 | 10.0 | 13.3 | 15.0 | 16.7 | 20.0 | 25.0 |
| Power Factor | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) |
| THDI (%) | <3 at nominal power | <3 at nominal power | <3 at nominal power | <3 at nominal power | <3 at nominal power | <3 at nominal power | <3 at nominal power |
| AC INPUT | |||||||
| Max. AC Input Power (VA) | 6000 | 7200 | 9600 | 12000 | 12000 | 14400 | 16000 |
| Nominal AC Grid Voltage (V) | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE |
| Nominal AC Grid Frequency (Hz) | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 |
| Max. AC Current (A) (per phase) | 9.1 | 10.9 | 14.5 | 18.2 | 18.2 | 21.8 | 24.2 |
| EPS OUTPUT | |||||||
| Max. Apparent Power (VA) | 5000 | 6000 | 8000 | 10000 | 10000 | 12000 | 15000 |
| Peak Apparent Power (VA) (60s) | 6000 | 7200 | 9600 | 12000 | 12000 | 14400 | 15000 |
| Nominal EPS Grid Voltage (V) | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE | 400/230Vac; 380/220Vac, 3L/N/PE |
| Nominal EPS Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. EPS Current (A) (per phase) | 7.2 | 8.7 | 11.6 | 14.5 | 14.5 | 17.4 | 21.7 |
| Power Factor | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) |
| Switching Time (ms) | <20 | <20 | <20 | <20 | <20 | <20 | <20 |
| THDV (%) | <3 @Linear Load | <3 @Linear Load | <3 @Linear Load | <3 @Linear Load | <3 @Linear Load | <3 @Linear Load | <3 @Linear Load |
| EFFICIENCY | |||||||
| MPPT Efficiency (%) | 99.90 | 99.90 | 99.90 | 99.90 | 99.90 | 99.90 | 99.90 |
| Max. Efficiency (%) | 97.30 | 97.70 | 97.70 | 97.90 | 97.90 | 97.90 | 97.90 |
| European Efficiency (%) | 97.20 | 97.20 | 97.20 | 97.20 | 97.20 | 97.20 | 97.20 |
| PROTECTIONS | |||||||
| PV Reverse Polarity Protection | YES | YES | YES | YES | YES | YES | YES |
| Battery Reverse Polarity Protection | YES | YES | YES | YES | YES | YES | YES |
| Anti-Islanding Protection | YES | YES | YES | YES | YES | YES | YES |
| Short-Circuit Protection | YES | YES | YES | YES | YES | YES | YES |
| Leakage Current Monitoring | YES | YES | YES | YES | YES | YES | YES |
| Insulation Resistance Monitoring | YES | YES | YES | YES | YES | YES | YES |
| Surge Category | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) | III (AC side), II (DC side) |
| Reverse Polarity Protection | YES | YES | YES | YES | YES | YES | YES |
| Overload / Temperature Protection | YES | YES | YES | YES | YES | YES | YES |
| AC/DC Surge Protection | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) | Type II (PV)/Type II (AC) |
| AFCI Protection | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| DC Disconnect | YES | YES | YES | YES | YES | YES | YES |
| GENERAL DATA | |||||||
| Dimensions (W*H*D) (mm) | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 | 600*450*226 |
| Package Dimensions (W*H*D) (mm) | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 | 665*545*390 |
| Net Weight (kg) | 34 | 34 | 34 | 34 | 34 | 34 | 34 |
| Gross Weight (kg) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Installation | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted |
| Operating Temperature Range (°C) | -25~+60 (Limited at 45) | -25~+60 (Limited at 45) | -25~+60 (Limited at 45) | -25~+60 (Limited at 45) | -25~+60 (Limited at 45) | -25~+60 (Limited at 45) | -25~+60 (Limited at 45) |
| Storage Temperature (°C) | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 | -40~+70 |
| Relative Humidity for Storage/Operation (%) | 0~100 | 0~100 | 0~100 | 0~100 | 0~100 | 0~100 | 0~100 |
| Altitude (m) | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 | <4000 @Limited above 2000 |
| Protection Class | I | I | I | I | I | I | I |
| Protection Rating | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) |
| Power Consumption (W) | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 | 20~25 |
| Idle Mode | YES | YES | YES | YES | YES | YES | YES |
| Cooling | Natural | Natural | Natural | Natural | Natural | Fan cooling | Fan cooling |
| Noise Level (dB) | <40 | <40 | <40 | <40 | <40 | <55 | <55 |
| Inverter Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless |
| Communication | Ethernet, EMS (RS485), meter, WLAN (WiFi+LAN+Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi+LAN+Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi+LAN+Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi+LAN+Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi+LAN+Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi+LAN+Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready | Ethernet, EMS (RS485), meter, WLAN (WiFi+LAN+Bluetooth), 4G (optional), DRM, Ripple Control, USB, BMS (CAN), SG Ready |
| Standard Warranty (Years) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons | 4* Capacitive touch buttons |
| Buzzer | 1, Internal (EPS and grounding fault) | 1, Internal (EPS and grounding fault) | 1, Internal (EPS and grounding fault) | 1, Internal (EPS and grounding fault) | 1, Internal (EPS and grounding fault) | 1, Internal (EPS and grounding fault) | 1, Internal (EPS and grounding fault) |
Notes:
[1] For 1000 V system, the maximum PV operating voltage is 950 V.
[2] The inverter power supply start-up voltage is 90 V.
[3] Belgian safety regulations require the apparent power of 10000 W to be 10000 VA.
