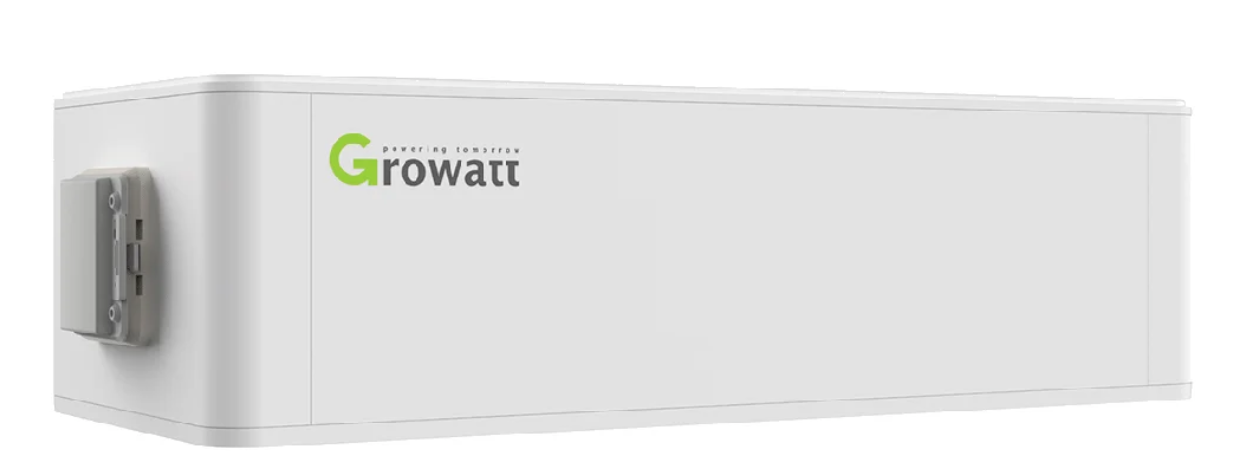

GROWATT HVC 60050-A1 BMS
SKU: F2G191-1
EAN: 2010000030769
| Szerokość netto | |
|---|---|
| Głębokość netto | |
| Wysokość netto | |
| Manufacturer | |
| Weight | 10,72 kg |
| CN | 85371010 |
Price
216,15 €
Gross
Gross
Email when stock available
Email when stock available
Product details
| Szerokość netto | |
|---|---|
| Głębokość netto | |
| Wysokość netto | |
| Manufacturer | |
| Weight | 10,72 kg |
| CN | 85371010 |
Growatt ARK HV Energy Storage System
The Growatt ARK high-voltage (HV) battery system is a flexible and safe energy storage solution that utilizes LiFePO4 technology. It allows for easy capacity scaling from 5.12 kWh to 25.6 kWh thanks to its modular, stackable design. Created for straightforward installation, long-lasting performance, and remote updates, it comes with a 10-year warranty.
Key Features of the Growatt ARK HV System:
- Flexible capacity selection: Capacity can be scaled from 5.12 kWh to 25.6 kWh by adding ARK 2.5H-A1 modules (from 2 to 10 units).
- Excellent safety: The use of lithium iron phosphate (LiFePO4) cells ensures a high level of operational safety.
- Easy installation: The modular design allows for simple stacking installations, whether on walls or floors (additional base required).
- Long lifespan and 10-year warranty: The system is designed for a long operational life, backed by a 10-year manufacturer’s warranty.
- Remote firmware updates: The capability of remote updating of the system’s firmware ensures optimal performance and new features.
- High protection rating: The IP65 rating protects the device from dust and water, allowing for flexible installation.
Who is this a good choice for?
The Growatt ARK HV system is an excellent choice for homeowners with photovoltaic installations who want to efficiently manage the energy they produce, increase self-consumption, and achieve greater energy independence. Its modular construction allows for easy adjustment of storage capacity to meet current and future needs. The safety of LFP technology, ease of installation, and a 10-year warranty make it a reliable and future-proof solution for home energy storage, especially when paired with compatible Growatt inverters.
| Parameter | ARK 5.1H | ARK 7.6H | ARK 10.2H | ARK 12.8H | ARK 15.3H | ARK 17.9H | ARK 20.4H | ARK 23.0H | ARK 25.6H |
|---|---|---|---|---|---|---|---|---|---|
| System Configuration (Battery Module: ARK 2.5H-A1 – 2.56kWh, 51.2V, 30kg) | |||||||||
| Number of modules*¹ | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Battery Capacity (kWh) | 5.12 | 7.68 | 10.24 | 12.8 | 15.36 | 17.92 | 20.48 | 23.04 | 25.6 |
| Nominal Voltage (V) | 102.4 | 153.6 | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 | 512 |
| Operating Voltage Range (V) | 94.4-113.6 | 141.6~170.4 | 188.8~227.2 | 236-284 | 283.2~340.8 | 330.4~397.6 | 377.6~454.4 | 424.8~511.2 | 472~568 |
| Dimensions (W/D/H)*² (mm) | 610/250/570 | 610/250/770 | 610/250/970 | 610/250/1170 | 610/250/1370 | 610/250/1570 | 610/250/1770 | 610/250/1970 | 610/250/2170 |
| Weight*² (kg) | 70 | 100 | 130 | 160 | 190 | 220 | 250 | 280 | 310 |
| General | |||||||||
| Battery Type | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) |
| Standard Charge/Discharge Current (A/C-rate) | 25A/0.5C | 25A/0.5C | 25A/0.5C | 25A/0.5C | 25A/0.5C | 25A/0.5C | 25A/0.5C | 25A/0.5C | 25A/0.5C |
| Maximum Charge/Discharge Current (A/C-rate) | 50A/1C | 50A/1C | 50A/1C | 50A/1C | 50A/1C | 50A/1C | 50A/1C | 50A/1C | 50A/1C |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Mounting*³ | Wall or Floor Mount | Wall or Floor Mount | Wall or Floor Mount | Wall or Floor Mount | Wall or Floor Mount | Wall or Floor Mount | Wall or Floor Mount | Wall or Floor Mount | Wall or Floor Mount |
| Operating Temperature*⁴ (°C) | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 | -10 ~ 45 |
| Features | |||||||||
| Depth of Discharge (DoD) (%) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Warranty (years) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| BMS Controller (HVC 60050-A1) | |||||||||
| Weight of BMS Controller (kg) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Communication Port | CAN | CAN | CAN | CAN | CAN | CAN | CAN | CAN | CAN |
| Dimensions of BMS Controller (W/D/H) (mm) | 610/250/170 | 610/250/170 | 610/250/170 | 610/250/170 | 610/250/170 | 610/250/170 | 610/250/170 | 610/250/170 | 610/250/170 |
| Certifications | |||||||||
| Certifications | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 | IEC62619(Cell&Pack), CE, CEC, RCM, UN38.3 |
